Home > Block Making machine

  • QT12-15 Automatic Cement Brick Machine
  • QT12-15 Automatic Cement Brick Machine

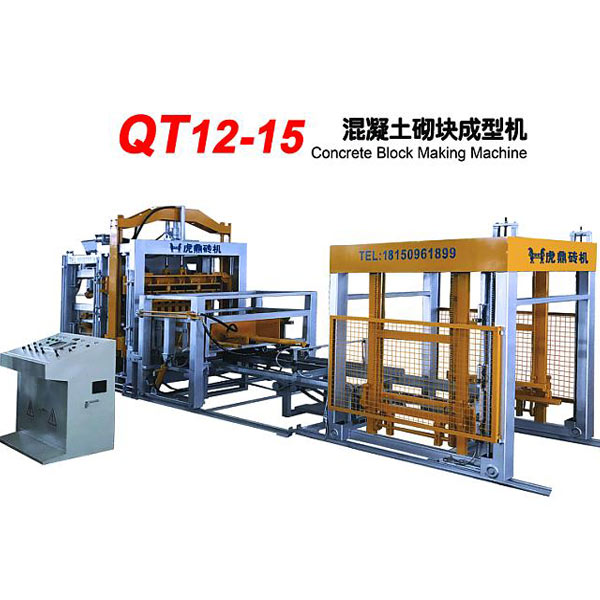

QT12-15 Automatic Cement Brick MachineQT12-15 Automatic Cement Brick Machine

QT12-15 Automatic Cement Brick Machine

  • Product description: QT12-15 Automatic Cement Brick Machine with Conservation room
  • INQUIRY


QT12-15 cement brick machine


block machine Main Technical Parameters:

Forming method

Vibration compression molding

Vibration frequency

3800-4500

preset pressure

31.5mpa

Molding cycle

15-20(s)

Exciting force

150KN

Installed capacity

60.2(kw)

Total Weight

15200(kg)

Exterior specifications

12000×4550×2800(mm)

Pallet specifications

1350×880×30(mm)

Brick machine forming block parameters:

Hollow brick:

12 pieces / mould (390 × 190 × 190) 17280 ~ 23040 pieces / shift 8 hours
Solid brick:

70 pieces / mould (240 × 115 × 51) 100,000 ~ 130,000 pieces / shift 8 hours
Perforated brick:

30 pieces / die (240 × 115 × 90) 43200 ~ 57600 pieces / shift 8 hours
Pavement brick:

44 pieces / mould (200 × 100 × 60) 60,000 ~ 84000 pieces / shift 8 hours

Note: The above output table is a theoretical calculation. The molding cycle and production volume are related to the raw materials and product types.
