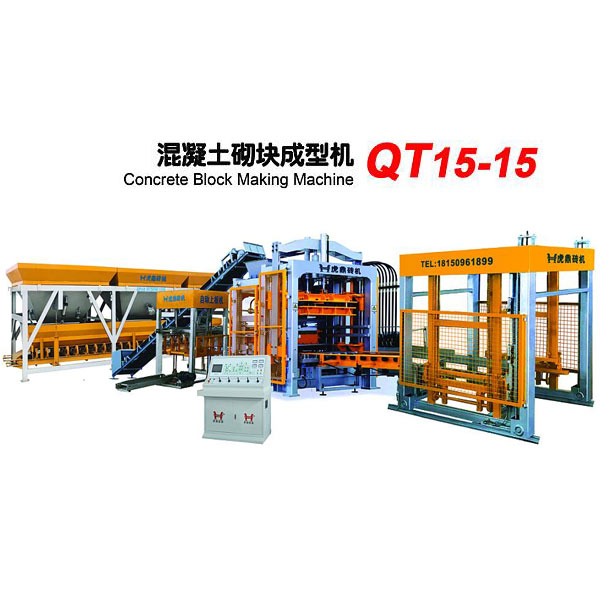

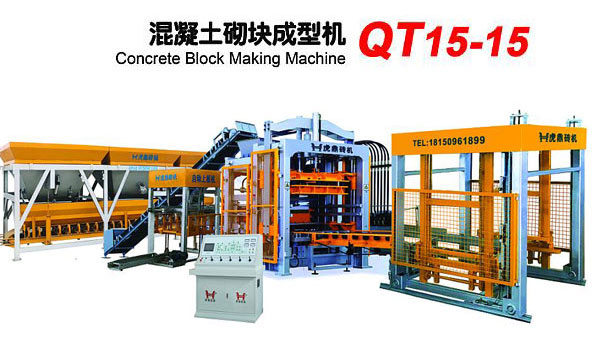

QT15-15 Automatic Cement block machine Production Line



Block Machine Main Technical Parameters:

Forming method

Vibration compression molding

Vibration frequency

3800-4500

preset pressure

32.5mpa

Molding cycle

15-20(s)

Exciting force

180KN

Installed capacity

64(kw)

Total Weight

15200(kg)

Exterior specifications

11500×4750×2800(mm)

Pallet specifications

1350×1100×30(mm)

Brick machine forming block parameters:

Hollow brick:

15 pieces / mould (390 × 190 × 190) 20000-23000 pieces / shift 8 hours
Solid brick:
84 pieces / mould (240 × 115 × 51) 68000-90000 pieces / shift 8 hours
Perforated brick:

48 pieces / mould (240 × 115 × 90) 120000-140000 pieces / shift 8 hours
Pavement brick:

55 pieces / mould (200 × 100 × 60) 79200-85000 pieces / shift 8 hours

Note: The above output table is a theoretical calculation. The molding cycle and production volume are related to the raw materials and product types.
